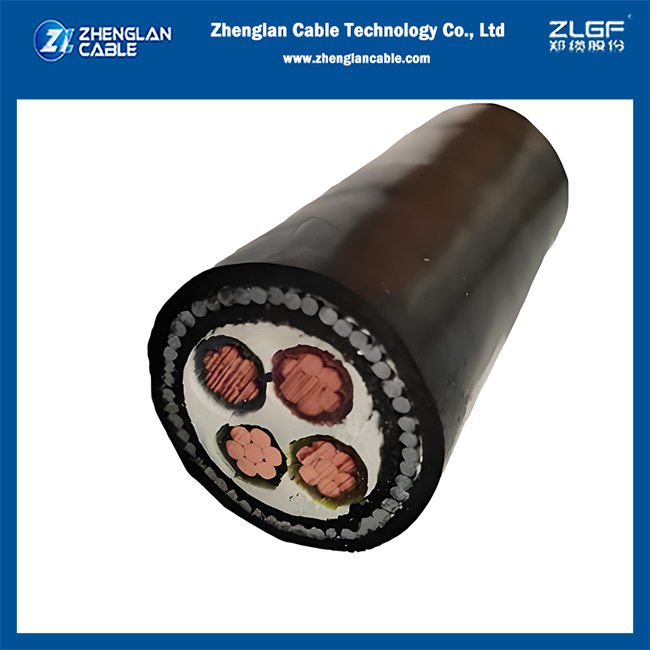

Insulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467

Λεπτομέρειες για το προϊόν

Τόπος καταγωγής: Henan, ΣΟ

Μάρκα: Zhenglan Cable

Πιστοποίηση: ISO, CCC, CE,

Αριθμό μοντέλου: Καλώδιο ισχύος με ενιαίο πυρήνα CU/XLPE/PVC U1000 R2X 1x95mm2

Όροι πληρωμής και αποστολής

Ποσότητα παραγγελίας min: 1000 μέτρα

Τιμή: 0.5-90USD/m

Συσκευασία λεπτομέρειες: Κούρκος ξύλου, κούρκος ξύλου από χάλυβα, πλήρως χάλυβα

Χρόνος παράδοσης: 15 εργάσιμες μέρες

Όροι πληρωμής: Λ/Κ, Τ/Τ, Western Union

Δυνατότητα προσφοράς: 30000m/ημέρα

Βρείτε την καλύτερη τιμή
Επισημαίνω:

Insulated Cables BS5467

,

Insulated Cables 1KV

Διοικητής:
Χαλκός
Απομόνωση:
XLPE
Ζακέτα:
PVC (ή LSZH κατόπιν αιτήματος)
Μέγεθος:
1.5~630mm2
Αριθμός πυρήνων:
1Core
Ονομαστική Τάση:
00,6/1kv
Πανοπλία:
Εργαλεία από χαλύβδινο σύρμα
Κλινοσκεπάσματα:
Εκχυλισμένο PVC
Διοικητής:
Χαλκός
Απομόνωση:
XLPE
Ζακέτα:
PVC (ή LSZH κατόπιν αιτήματος)
Μέγεθος:
1.5~630mm2
Αριθμός πυρήνων:
1Core
Ονομαστική Τάση:
00,6/1kv
Πανοπλία:
Εργαλεία από χαλύβδινο σύρμα
Κλινοσκεπάσματα:
Εκχυλισμένο PVC
Insulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467

1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467


Application:

1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467 are resistant to mechanical loads, able to sustain heavier mechanical tensile strains, could be laid slantingly or vertically, same as on grounds exposed to land-sliding. They are widely used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.


Construction:
Conductors:Class 2 as per IEC 60228, BS EN 60228 can also be supplied upon request.
InsulationXLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Inner sheath: PVC

Armor: galvanized steel wire

Wrapping tape: non-woven fabric

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.

Special type of PVC sheathing material such as flame retardant, Fire Resistant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as PE are available on request.

Characteristics:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.

1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467​​ Parameters Table:

Nominal Cross sectional area Approx Conductor Diameter Nominal Insulation thickness Nominal bedding thickness Nominal Steel Wire dia. Nominal Sheath thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
mm² Phase  Earth Phase  Earth mm mm mm mm  mm
mm mm mm mm
3x50/25 8.8 6.3 1 0.9 1 1.6 2 33 3100


1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467​ Products show:


Insulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467 0

Insulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467 1

Insulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467 2


Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services providedInsulated Cables 1KV RVMV-R Cu/xlpe/pvc/swa/pvc 3x50+1x25mm2 BS5467 3
